Wrought Phosphorbronze (Copper-Tin)

DIN EN 12163 - 12167/12449/1652/1654

Alloy Density approx. Composition
in %
Important
tempers
Tensile Strength
Rm
N/mm2
Yield Stress
Rp0,2
N/mm2
Elongation
A
%
Hardness
HV
Electr.
conductivity
MS/s
CuSn6
DIN EN
12163 - 167
12449
1652
1654
CW452K 8,8 Sn 5,5 - 7,0
P 0,01 - 0,4
Cu bal.
Plates

M
H160
H180






















160-190
180-210







Comparable Specifications:
CuSn6, 2.1020, DIN 17662
C51900 UNS 
PB 103, BS 2870-2875


Good corrosion resistance and strength properties. Hard-wearing, good solderability. Good cold formability. Springs of all kinds, especially for the electrical industry. Applications in the paper, pulp and chemical industries, in shipbuilding and mechanical engineering.

CuSn8
DIN EN
12163 - 167
12449
1652
1654
CW453K 8,8 Sn 7,5 - 8,5
P 0,01 - 0,4
Cu bal.
Bars

M
R390
R450
R550

Tubes

M
R450




≥ 390
≥ 450
≥ 550




≥ 450




≤ 280
≥ 280
≥ 400




≥ 250




≥ 45
≥ 26
≥ 15




≥ 25

























Comparable Specifications:
CuSn8, 2.1030, DIN 17662
C52100 UNS 
PB 104, BS 2870-2875


Better corrosion resistance than tin bronzes with lower tin content, higher strength and very good sliding properties and wear resistance. Good cold formability, good solderability. Sliding components, slide bearings (especially thin-walled ones) and sliding guides. Highly stressed worm and gear wheels, screws and bolts.

CuSn8P
DIN EN
12163
12449
CW459K 8,8 Sn 7,5 - 8,5
P 0,2 - 0,4
Cu bal.
Bars

M
R390
R450
R550

Tubes

M
R460




≥ 390
≥ 450
≥ 550




≥ 460




≤ 280
≥ 280
≥ 400




≥ 280




≥ 45
≥ 26
≥ 15




≥ 30

























Like CuSn8. The increased phosphorus proportion is aimed at improving wear resistance and sliding properties still further.

CuSn4Pb4Zn4
DIN EN
12164
CW456K 8,9 Sn 3,5 - 4,5
Pb 3,5 - 4,5
Zn 3,5 - 4,5
P 0,01 - 0,4
Cu bal.

Comparable Specifications:
C54400 UNS


Sheets and strips for rolled bushings.

= mechanical properties as manufactured

Further Phosphorbronzes available.

We supply

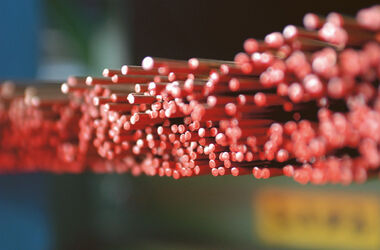

Bars
Wires
Plates
Strips

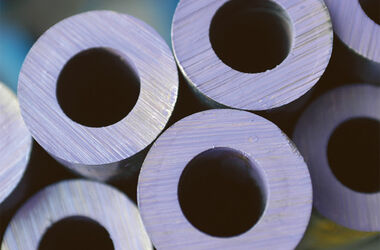

Tubes

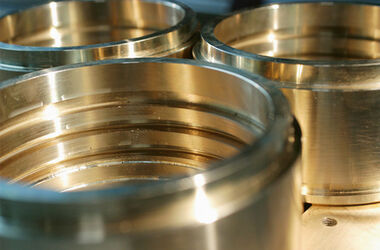

Bearings
DIN EN 12163/12167
DIN EN 12166
DIN EN 1652
DIN EN 1652/1564
DIN EN 12449
DIN 1850
